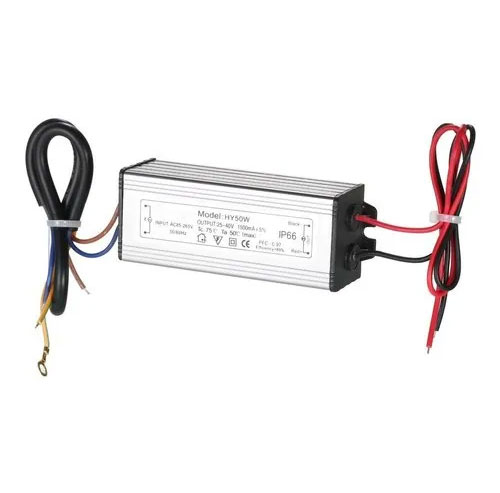

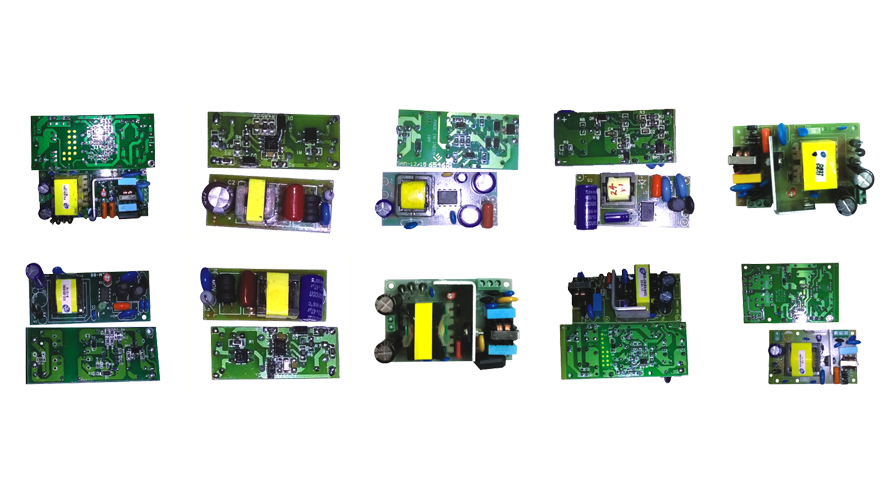

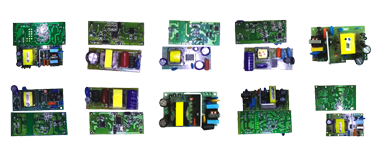

LED Drivers

KEY FEATURES OF DRIVER

  • Isolated type high efficiency >89%
  • High power factor > 0.9 and Low THD < 10%
  • Wide input voltage range of 90 to 370 V AC
  • High surge > 4.5kv
  • Wide operating temperature - 20OC to 65OC

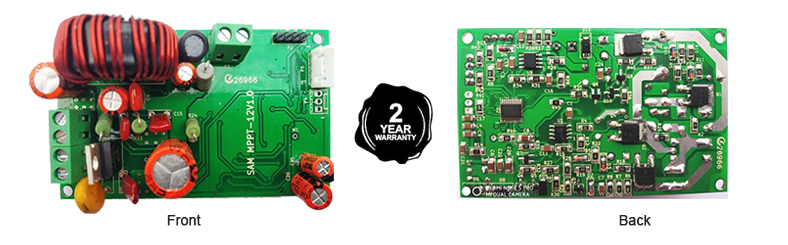

MPPT Buck Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (MPPT)
Specifications MPPT Charge Controller Protections LED Driver Parameters
Product MPPT BOOST LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 1 Amps
Maxumum Charging Current 8Amps   Battery low Power (MAX) 12 Watt
Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration BOOST- 36Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 80Watt Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 115X47X35 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code MPPT_V2.3

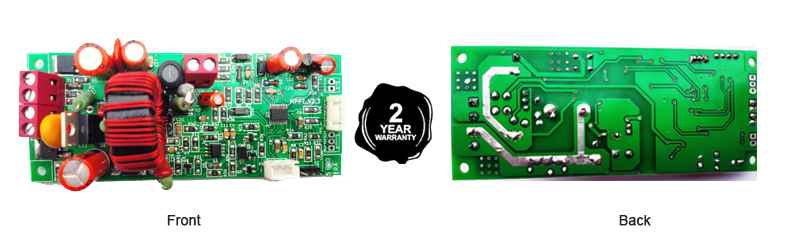

MPPT Buck Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (MPPT)
Specifications MPPT Charge Controller Protections LED Driver Parameters
Product MPPT BOOST LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 2.5 Amps
Maxumum Charging Current 8Amps   Battery low Power (MAX) 24 Watt
Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration Buck- 9Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 80Watt Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 115X47X35 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code SAM MPPT_V2.2

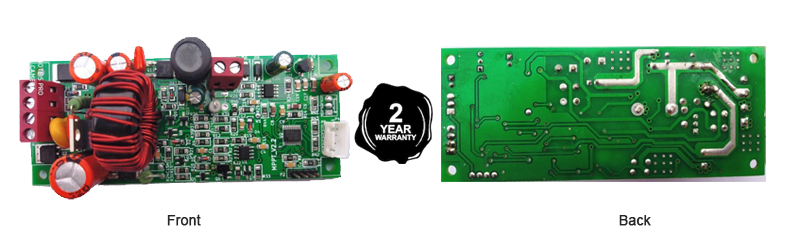

MPPT Boost Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (MPPT)
Specifications MPPT Charge Controller Protections LED Driver Parameters
Product MPPT BOOST LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 1 Amps
Maxumum Charging Current 8Amps   Battery low Power (MAX) 12 Watt
Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration BOOST- 36Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 80Watt Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 115X47X35 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code MPPT_V2.3

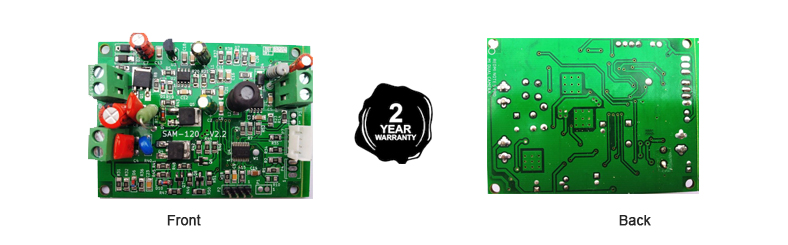

MPPT Boost Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (PWM)
Specifications PWM Charge Controller Protections LED Driver Parameters
Product PWM BOOST LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 340 MA
Maxumum Charging Current 5Amps   Battery low Power (MAX) 12 Watt
Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration BOOST- 36Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 80Watt Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 80X60X15 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code SAM -120-V2.2

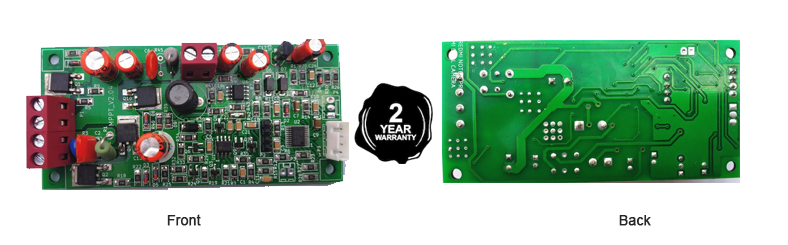

PWM Boost Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (PWM)
Specifications PWM Charge Controller Protections LED Driver Parameters
Product PWM BOOST LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 800 MA
Maxumum Charging Current 6/12 Amps   Battery low Power (MAX) 30 Watt
Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration BOOST- 36Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 100/200Watts Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 90x70x20 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code SAM-SMART SSL V4.0

PWM Buck Driver

SAMTEK SOLAR STREET LIGHT DRIVERS (PWM)
Specifications PWM Charge Controller Protections LED Driver Parameters
Product PWM BUCK LED indication   Input Voltage Range 9v-15 VDC
Nominal Battery Voltage (Volt) 12.8/ 11.1/ 12V   Battery charging Maximum Output 2.4 Amps
Maxumum Charging Current 8Amps   Battery low Power (MAX) 24 Watt
5Maximum PV Open Circuit Voltage 25VDC     Dusk to Dawn Provided
PV Voltage Range 15-25V Protection Driver Configuration Buck- 9Volts
Standby Power Consumption <10MA Solar Panel reverse Provided Regulated LED Current Provided
Maximum PV Panel Rating for 12V 80Watt Battery Reverse Protection Provided Conversion Efficiency >90%
Battery Charging Profile CC/CV Overload Protection Provided Motion Sensor Enabled Provided
Battery Type PO4/Liion/Tubular Thermal Protection Provided Dimming Duration 6 steps (as per requirment)
Battery charging cut off voltage 14.6/ 12.6/ 14.4V Others parameters Environmental Parameters
Battery low cut off 10.6/ 9.2/ 9.8V Dimensions (mm) 115X47X34 mm Ambient Temperature 0 to 45*C
Power Conversion Efficiency >93% Net Weight   Storage Temperature 0 to 80*C
battery reconnect 12.6/11.1/12.4V Product code MPPT_V2.04
