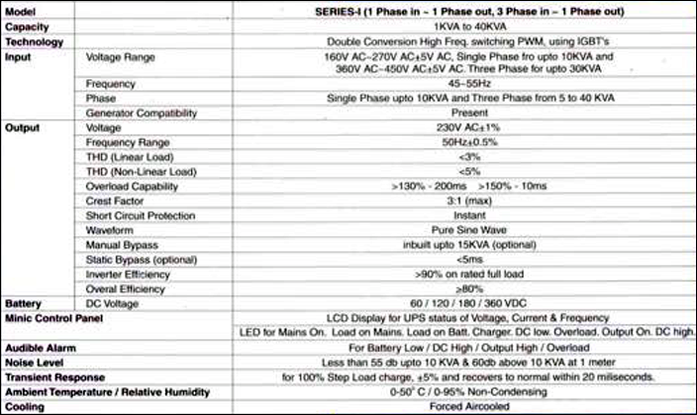

Series - I

Applications:

Small computor network, Servers, Cyber Cafe Networking equipments, computor rooms, mission critical process, banks, offices, railways, airport, hospitals, defence and telecom centers, all type of Single Ph, Loads

Features

• True online Double Conversion technology.
• High end Micro Controller.
• Automatic battery charging in UPS off mode.
• Wide Input voltage range.
• Short circuit and Overload Protection.
• Galvanic Isolation.
• 1 Phase in - 1 Phase out (upto 10KVA)
• 3 Phase in - 1 Phase out (upto 40KVA)
• Specially Designed to suit Indian Power and environment conditions.
• Generator Compatible.
• Inbuilt PFC. (0.9)

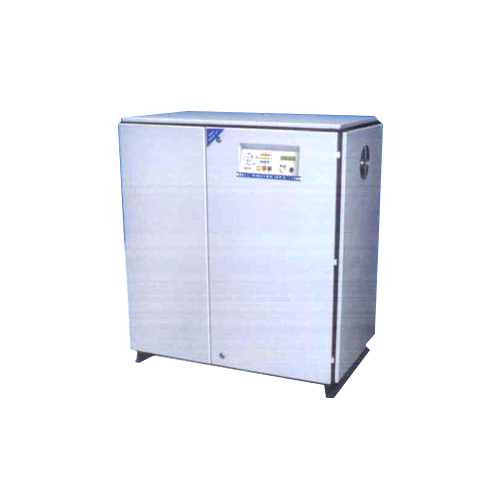

Online UPS

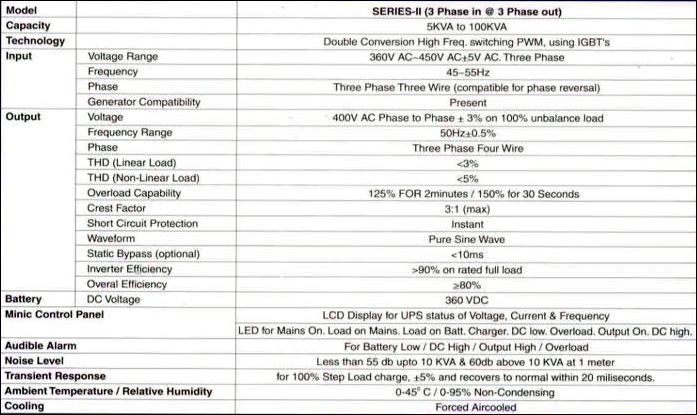

Series - II

Applications :

Software Centers, mission critical process, offices, railways, airport, hospitals, defence, telecom centers, chemical plants, pharmaceutical laboratry and all type of three ph. load e.g. 3 ph. motor, lifts etc.

Features

• True online Double Conversion technology.
• High end Micro Controller / DSP based.
• Automatic battery charging in UPS off mode.
• Wide Input voltage range.
• Short circuit and Overload Protection.
• Galvanic Isolation.
• 3 Phase in - 3 Phase out.
• Specially Designed to suit Indian Power and environment conditions.
• Generator Compatible.
